PLANET VIP-1120PT IP Phone

₨ 12000

Hardware
Lines (Direct Numbers)	2 SIP Lines
Physical Interfaces	LCD x 1: 2.4-inch (320 x 240) color LCD Keypad: 32 keys, including • 4 soft-keys • 12 standard phone digit keys • 5 navigation keys • 2-line key with tri-color LED • 5 function keys • 3 volume control keys — Up, Down, Mute (microphone) • 1 hands-free featureHD hands-free speaker (0 ~ 7KHz) x 1 HD hands-free microphone (0 ~ 7KHz) x 1 HD handset (RJ9) x 1
Protocols and Standard
Protocols	SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE 802.1x L2TP (basic unencryption) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069
Request for Comments (RFCs)	354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865
Networking
Networking	Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass IP Configuration: Static, DHCP, PPPoE Network Access Control: 802.1x VPN: L2TP (basic unencryption), OpenVPN VLAN QoS
Deployment & Maintenance	Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069 Web management portal Web-based packet dump Configuration backup/restore Auto/Manual online software upgrade Syslog
Features
Call Features	Call out, answer, reject Mute/unmute (microphone) Call hold, resume Call waiting Intercom Caller ID display Call forwarding (always/busy/no answer) Call transfer (attended/unattended) Call parking, pick-up (depending on server) Redial Do-not-disturb (per line/per phone) Auto-answering (per line) Voice message (on server) Local 3-way conferencing Hot line
Phone Features	Phone accessibility control by user PIN Intelligent phonebook (up to 500 entries in total) Remote phonebook (XML/LDAP) Intelligent contact number matching/filtering Call log (300 entries in total, in/out/missed) Voice message waiting indication (VMWI) Network time synchronization Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, German, Dutch, Spanish, Hebrew, Polish, French, etc.
Audio Features	HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response) Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729AB Wideband codec: G.722 Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info
Environment
Power Requirements	IEEE 802.3af Power over Ethernet 5V 600mA
Operating Temperature	0 ~ 40 degrees C
Operating Humidity	10 ~ 65% (non-condensing)
Weight	620g
Dimensions (W x D x H)	196 x 164 x 60 mm
Emission	CE, FCC, RoHS
Connectors	RJ9 phone jacket x 2: Handset x 1 Headphone x 1 RJ45 Ethernet jacket x 2: Network x 1 (802.3af PoE Class 1 enabled) PC x 1 (Bridged Network)

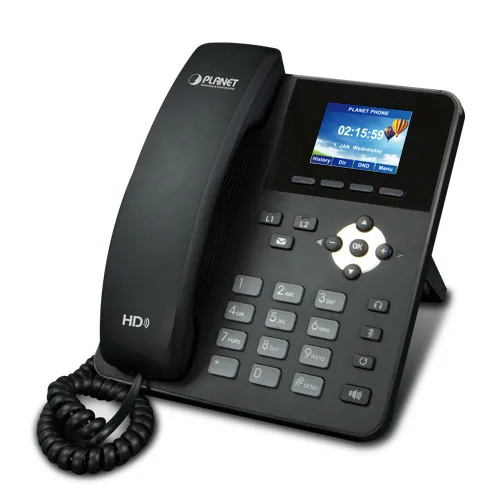

PLANET VIP-1120PT IP Phone

Intuitive Design Brings Quality Communication
PLANET VIP-1120PT is a two-line SIP desktop phone with color display that brings lifelike richness and voice quality to phone calls. The VIP-1120PT is a reliable communication device as it features ease of use, versatility, high-quality design and superb audio performance. Besides, its full duplex speakerphone system with HD voice can definitely make communication between two or more business parties crystal clear with no interference noise in the background as it supports the G.722 wideband codec.

IP Phone with Color Display
As the VIP-1120PT is an IP phone, it allows you to make calls from any location easily as long as it is online. Its 2.4-inch TFT color display with a resolution of 320 x 240 pixels offers a clear depiction of caller’s information. It complies with IEEE 802.3af PoE interface for flexible deployment and supports superior audio quality delivered by the advanced speaker and microphone system, and the digital signal processor (DSP).

Compliant with SIP 2.0
SIP phones continue to gain popularity among businesses as the preferred protocol for enhancing communication across IP networks. The VIP-1120PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-1120PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better voice over IP services.

Affordable for All Businesses
The VIP-1120PT is definitely affordable for all business establishments who want flexible deployment options and expansion. It can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service) and IP ToS technology.
