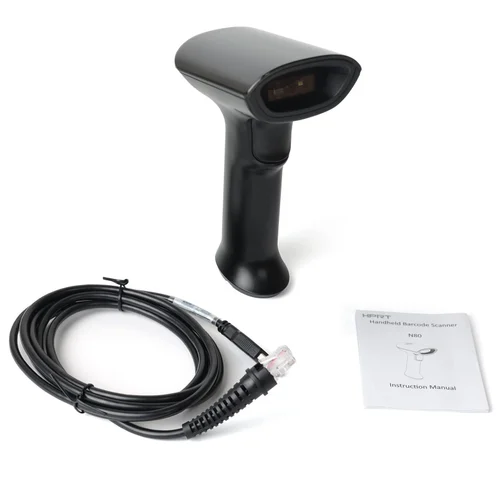

HPRT N80 2D Handheld Barcode Scanner
| Item |
HPRT N80 2D Handheld Barcode Scanner |
||
| Sensor | CMOS | ||
| Pixels | 640*480 | ||
| Illumination | White light | ||
| Aiming | Red light | ||
| Symbologies |
2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode , Postal Codes etc.
1 D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN,UPC-E,UPCA, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc. |
||
| Recognizing Precision | ≥4mil | ||
| Depth of Field | EAN-13：30-200mm
QR(20mil): 20-150mm |
||
| Barcode Sensibility | Pitch±45º
Tilt360º Skew±45º |
||
| Field of view | Horizontal: 40°, vertical: 30° | ||
| Relative Contrast Value | ≥25% | ||
| Dimension(mm) | 100*68*165 | ||
| Weight | 135g | ||
| Interface Type | RJ-45 crystal head | ||
| Housing Material | PC+ABS | ||
| Notification | Buzzer, LED light | ||
| Interfaces | RS-232 serial interface
USB keyboard USB virtual serial interface |
||
| Trigger Method | Keyboard recognition
Induction recognition Continuous recognition |
||
| Operating Voltage | 5VDC±10% | ||
| Operating Current | Standby: 50mA
Working: 230mA |
||
| Working Temperature | -20–50°C | ||
| Storage Temperature | -40–70°C | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±4Kv Contact Discharge ±8Kv Air Discharge | ||
| Drop | 1.2m | ||
| Environmental Sealing | IP42 | ||
| Certifications | CE FCC | ||
Quick EnquiryHPRT N80 2D Handheld Barcode Scanner
2D Imager barcode reader HPRT brand N80 model
- Reads up to 20 cm distance
- Resolution: 640 x 480 pixels
- 120 cm drop on concrete surface
- IP42 Sealing
- Interface USB or RS232
- Dimension: 100 mm x 68 mm x 165 mm
- Weight: 135g
- Optional table stand
- Available in black color
