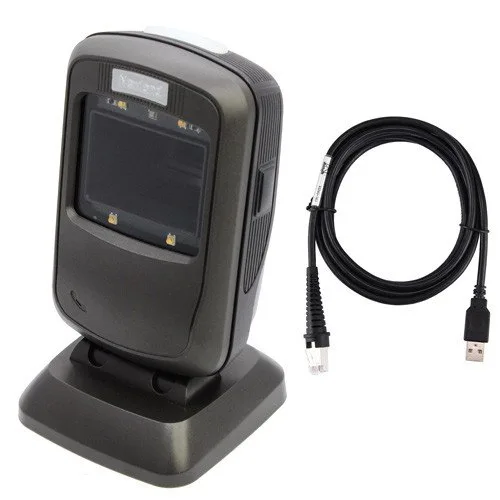

Newland NLS – FR40 | 2D Table Barcode Scanner
PRODUCT SPECIFICATIONS
Brand Newland
Operating Temperature -20 to 50 deg C
Applications POS Terminals, Custome Rservice Desk & Ticket Validators
Dimensions 83x81x148 mm
Weight 292 g
Protection Class IP50
Voltage 100-240 V AC
Image Sensor CMOS 752×480
Humidity 5-95%�Non Condensing
Pitch Scan Angle: �60 deg at 0 deg Roll and 0 deg Skew
Frequency 50-60 Hz
Scan
Angle Roll: �360 deg at 0 deg Pitch and 0 deg Skew
�Angle Skew: �55 deg at 0 deg Roll and 0 deg Pitch
Current Standby: 120 mA
Output Voltage 5 V DC
Interface RS232, USB & PS2
Operating Current 150 mA
Quick EnquiryNewland NLS – FR40 2D Table Barcode Scanner
Quick to Switch Mode
The Scan Mode Switch at the top of the scanner allows users to swiftly toggle between the Regular and Screen modes.
- Superior Motion Tolerance
Exceptional motion tolerance (2.5m/s) and large FOV (46°) enhance user experience. - IP50-rated Sealing
An IP50-rated seal renders the scanner impervious to dust, water and other contaminant. - Superb Reading Performance
Armed with Newland’s fifth-generation of UIMG technology, the scanner is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film.1.2m Drop ResistanceThe scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side). - IR Trigger
The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity
