Newland NLS-HR2081-Lite Handheld 2D Scanner | QR Code, PDF417, Data Matrix, Aztec & multiple 1D formats |

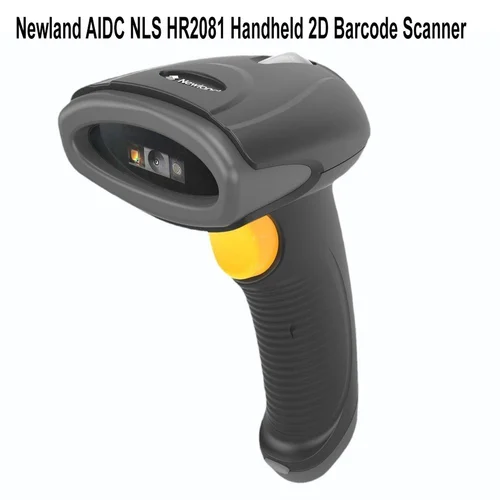

Newland NLS-HR2081-Lite Handheld 2D Scanner
| Specification | Details |
|---|---|
| Brand | Newland |
| Model / Part Number | HR2081 Lite |
| Product Type | 2D Handheld Barcode Scanner |
| Decode Capability | 1D & 2D Barcodes |
| Supported Codes | QR Code, PDF417, Data Matrix, Aztec & multiple 1D formats |
| Image Sensor | 640 × 480 CMOS |
| Illumination | White LED |
| Aiming | Red LED (625nm) |
| Resolution | ≥ 3mil |
| Scan Angle | Pitch ±50°, Skew ±50°, Roll 360° |
| Field of View | Horizontal 45°, Vertical 34° |
| Minimum Symbol Contrast | ≥ 30% |
| Depth of Field | 55mm–230mm (13mil, EAN-13) |
| Connectivity | USB |
| Operating Voltage | 5V DC ±10% |
| Power Consumption | ~1176.5mW |
| Dimensions (L×W×H) | 101 × 68 × 145 mm |
| Weight | 164.3g |
| Notifications | Beep + LED Indicator |
| Ingress Protection | IP42 |
| Drop Resistance | 1.2m |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% – 95% (Non‑Condensing) |
| Certification | RoHS 2.0, IEC62471, BIS |
| Warranty | 1 Year Manufacturer Warranty |
Quick EnquiryNewland NLS-HR2081-Lite HANDHELD 2D BARCODE SCANNER
Product Description
The Newland HR2081 Lite 2D Barcode Scanner is a cost‑effective and high‑performance scanning solution designed for retail, billing, warehouse, and POS applications. Combining a 640×480 CMOS sensor with Newland’s advanced decoding chip, it delivers fast and accurate scanning of both printed and on‑screen barcodes.
Built for everyday business operations, the HR2081 Lite features a lightweight ergonomic design that ensures comfortable use during extended shifts. Its durable construction and IP42 protection safeguard against dust and minor splashes, making it suitable for demanding environments.
With plug‑and‑play USB connectivity, it integrates seamlessly into existing systems, minimizing setup time and maximizing productivity. Whether for small businesses or high‑volume operations, the HR2081 Lite offers dependable data capture at an affordable cost.
