Ocom POS-1566 15.6-inch Touch POS Terminal | i5-6th Gen Processor | 8GB DDR4 Memory | 128GB SSD | IPS Full HD PCAP 15.6″ Touch & 11.6″ Rear-Display Non-Touch | 1 Year Parts Replacement Warranty

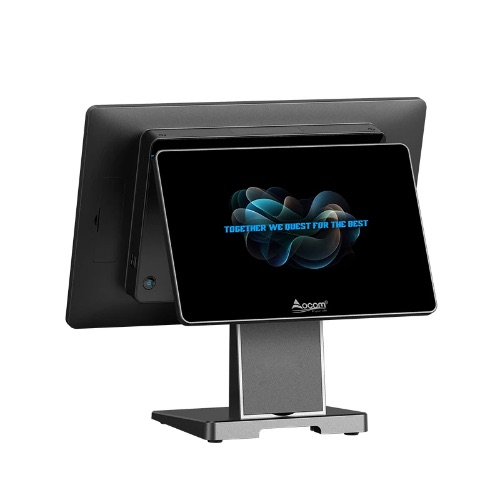

Ocom POS-1566 15.6-inch Touch POS Terminal
| Model | POS-1566-W |
| Name | 15.6 inch Windows touch screen POS terminal |
| Main screen | 15.6 inch touch screen monitor |
| Resolution | Full HD ( 1920*1080 ) |
| Brightness | 250cd/m2 |
| View angle | Horizon: 160; Vertical :150 |
| Touch screen | Multi-point projected G+G capacitive touch |
| Sub-display | 11.6inch display W or W/o touch function, resolution 1366*768 |
| Customer display | 2*20 VFD mounted to back cover for option |
| Performance | |
| Motherboard | Intel Core I5 6th CPU,other CPU need to be customized |
| System Memory | 8GB DDR4 |
| Storage device | Msata SSD 128GB or higher, up to 512GB |
| Audio | On board Real-tech chip |
| LAN | 10//100/1000Mbs, 1*Realtek RTL8111 LAN chip
built in Mini PCI-E slot,support embedded WIFI module |
| Optional WIFI&BT | 2.4G&5G WIFI, BT 5.0 supported for option |
| Speaker | 4ohm/2w*1 |
| Operating System | Support win10 /win11 |
| Connectivity | |
| External I/O port (I5 4th) | power button*1 |
| 12V DC in jack*1 | |
| LAN:RJ-45*1 | |
| 2*USB3.0，4*USB2.0 | |
| COM(RS232) * 1 | |
| 1*HDMI | |
| Audio out*1，1*Mic-in | |
| Package | |
| Weight | Net 3.5kg(without power adaptor and power cord) |
| Package with foam inside | 470*180*400mm/4.6kg |
| 2 in1 box | 485*365*405mm/10kg |
| Environment | |
| Operating temperature | 0 to 40 degrees centigrade |
| Storage temperature | -10 to 60 degrees centigrade |
| Working humidity | 10%~80% No condensation |
| Storage humidity | 10%~90% No condensation |
| Accessories | |
| Power adapter | 100-240V/50-60HZ 1.5Amax AC power input ,DC12V/5A output adaptor |
| Power cable | Power cable plug compatible with USA /EU / UK etc and customized available |
Quick EnquiryOcom POS-1566 15.6-inch Touch POS Terminal
- 15.6 inch BOE brand new LCD screen;
- Multi-point projected capacitive touch panel;
- Removable bottom plate for smaller packaging and less shipping cost;
- The main screen supports large angle rotation to meet any observation angle;
- Border-less screen , the front protects against direct water splashes;
- Ultra-thin body makes the product more concise and stylish;
- Thick and stable aluminum base;
- Cable slots inside the base make the cable more tidy;
- Customer display, secondary screen and MSR installation position is reserved on the shell.
OCOM Wide-screen POS terminal has stylish and ultra slim body design, It has Android and windows OS motherboard for option,it is easy to install 2nd display, MSR or VFD as modules by customers.This model is very convenient for maintenance by removing the back cover and it has rich I/O interfaces to be connected to more external devices.
