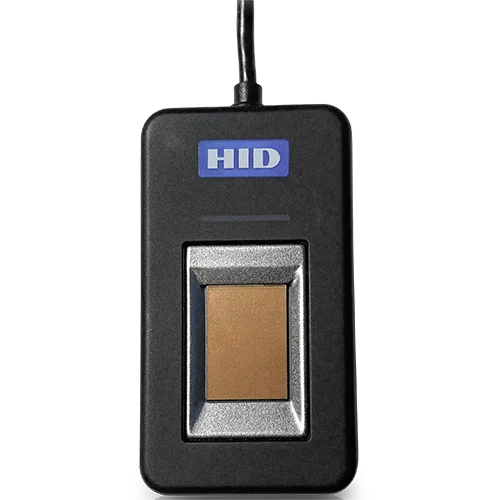

HID EikonTouch® TC510 Capacitive Fingerprint Reader
Model Number 510
COMPACT FORM FACTOR
Fingerprint Sensor TCS1S (touch)
Package Size (mm) 35 x 63.5 x 14.2
Scanned Finger Area (mm) 12.8 x 18
Pixel Array Size (pixels) 256 x 360
Weight (g) 124
Form Factor Same housing as the DigitalPersona 4500 optical fingerprint reader with a
weighted base for added stability.
USB Cable
& Connector Options
Cable lengths: 20 cm or 183 cm (7.8 or 72 in.) lengths
USB Connectors: Type-A, Micro-B or Type C
HIGH PERFORMANCE
Acquisition Speed 5.5 frames/sec
Image Resolution 508 dpi
Grayscale Image Depth. 8-bit (256 levels)
Interface USB 2.0 full speed
SECURE
USB Data Encryption Up to AES-256
On-board Data Storage Up to 100 finger templates
RUGGEDIZED
ESD Protection IEC 61000-4-2 level 3: 8kV air, 6kV contact
Ingress Protection IP 65 for moisture and dust protection
Operating Temperature -10° to 50° C
Protective Coating > 4 million touches
Humidity 5% – 95% RH
Certification CE/FCC/WHQL/UL / RoHS / Reach / WEEE
EFFICIENT POWER MANAGEMENT
Power Imaging ~ 130 mA @ 5V
Power Standby ~ 1 mA @ 5V
INTEGRATION EASE
OS Support Support for Windows®, Linux® and Android® operating systems
Development Kit Options DigitalPersona® Biometric SDK supports a variety of thin client and browser
plug-in options
Quick EnquiryHID EikonTouch 510 Fingerprint Reader
The EikonTouch 510 USB capacitive silicon fingerprint reader features enhanced usability and durability that is ideally suited for high traffic environments such as point-of-sale and multi-user applications. The new compact design has improved finger guide ergonomics for ease of use offering LED feedback above the finger placement area for intuitive fingerprint enrollment, capture and verification.
The patented technology captures high-quality images for a wide range of fingerprints and provides liveness detection for quick and reliable biometric authentication. Our biometric identity verification solution provides enterprise customers and system integrators with a natural extension to security infrastructure, perfect for desktop PC security, mobile PC security, access control and other custom applications. For high-traffic applications, the Steelcoat protective coating provides exceptional durability.
Key Features:
- Steelcoat provides added durability for high-traffic applications
- On-board processing for template generation, template matching and template storage
- Encrypted USB communication
- PAD (Presentation Attack Detection)
Designed for use with the DigitalPersona Software Developer Kit (SDK) that provides flexible APIs to enable fast integration of the EikonTouch 510 into a broad range of applications.
